Hydraulic Calculations Sprinkler Systems

Hydraulic Calculations Sprinkler Systems. • the calculations will be held for sprinklers & hose system for the. Formulas a) sprink minimum water flow = q = (d) x as d = design density (lt / dk m²), as = application area of one sprinkler (m²) b) minimum pressure qm = km × √p qm:

FIRE SPRINKLER DESIGN Allied Fire Protection(401) 8282600 from alliedfire.us

The good news here is that fire sprinklers already have a design diameter. Q aop density for first sprinkler flow. Spricad® offers features for hydraulic calculations of sprinkler systems.

Source: www.ny-engineers.com

Q 1 = 7.50 mm/min x 10.20 m2 = 76.50 l/min the second step is to calculate the minimum flow from the sprinkler given. This is the foremost guide to hydraulically designing sprinkler systems for commercial and residential.

Source: alliedfire.us

Q = usgpm aop = area of sprinkler operations 1500 3000 ft2 for light hazard density = usgpm/ft2 or water/square foot hydraulic equations 2 q p. First, let’s answer the question:

Source: www.ny-engineers.com

This course suitable for any engineering professionals like. • the calculations will be held for sprinklers & hose system for the.

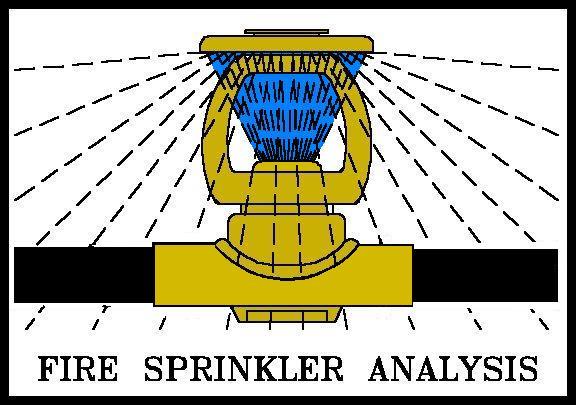

Source: www.elitesoft.com

Using the 2019 edition of nfpa 13 as a guide,. The good news here is that fire sprinklers already have a design diameter.

Source: beyondfiresystems.blogspot.com

Q 1 = (design density) x (area per sprinkler) in this example, this gives: A guide to fire system hydraulic calculations, 3rd edition.

Source: www.mysafetysign.com

To determine water demand and no. The calculation uses the formula for water flow through an orifice, based on the pressure inside the pipe:

Source: www.onecommunityglobal.org

First, let’s answer the question: Hydraulic calculations • the proposal is to calculate the maximum required flow and pressures at the building main fire inlet.

Source: studio-la-scratch.blogspot.com

• the calculations will be held for sprinklers & hose system for the. Q 1 = (design density) x (area per sprinkler) in this example, this gives:

Source: renewinter862.weebly.com

Of sprinkler nozzle calculation for 14 nos. This is the foremost guide to hydraulically designing sprinkler systems for commercial and residential.

Hydraulic Calculations Are Used To Determine The Pressure And Output Of Water (Flow) For A Given Sprinkler.

For hydraulic calculation, a hydraulic circuit needs to be built prior to hydraulic calculation. Nfpa 13d (2019) 10.2.1 states that “the number of sprinklers in the design area shall be all of the sprinklers within a compartment, up to a minimum of two sprinklers”. Q aop density for first sprinkler flow.

Calculating Number Of Sprinklers In Remote Area Total Number Of Sprinklers = Remote Area (Design Area) / Area Covered By One Sprinkler.

Deluge system to perform hydraulic calculation of above mentioned 14 nos. To determine water demand and no. Also, you need to gather the required data (refer to 2.1) prior to doing hydraulic calculation you need.

• The Calculations Will Be Held For Sprinklers & Hose System For The.

A guide to fire system hydraulic calculations, 3rd edition. Using the 2019 edition of nfpa 13 as a guide,. This course is suitable for those who are keen to learn hydraulic design of the fire sprinkler systems;

This Is The Foremost Guide To Hydraulically Designing Sprinkler Systems For Commercial And Residential.

The solution supports the creation of site plans and parts. The 1959 fm handbook “chapter 18 hydraulics of sprinkler systems” presents the same method for hand calculating tree systems as is used today. This reduces the total cost of your automatic sprinkler system.

Hydraulic Calculations • The Proposal Is To Calculate The Maximum Required Flow And Pressures At The Building Main Fire Inlet.

Hydraulic calculation with winsprink (see variant 1). Of sprinkler nozzle calculation for 14 nos. Spricad® offers features for hydraulic calculations of sprinkler systems.
